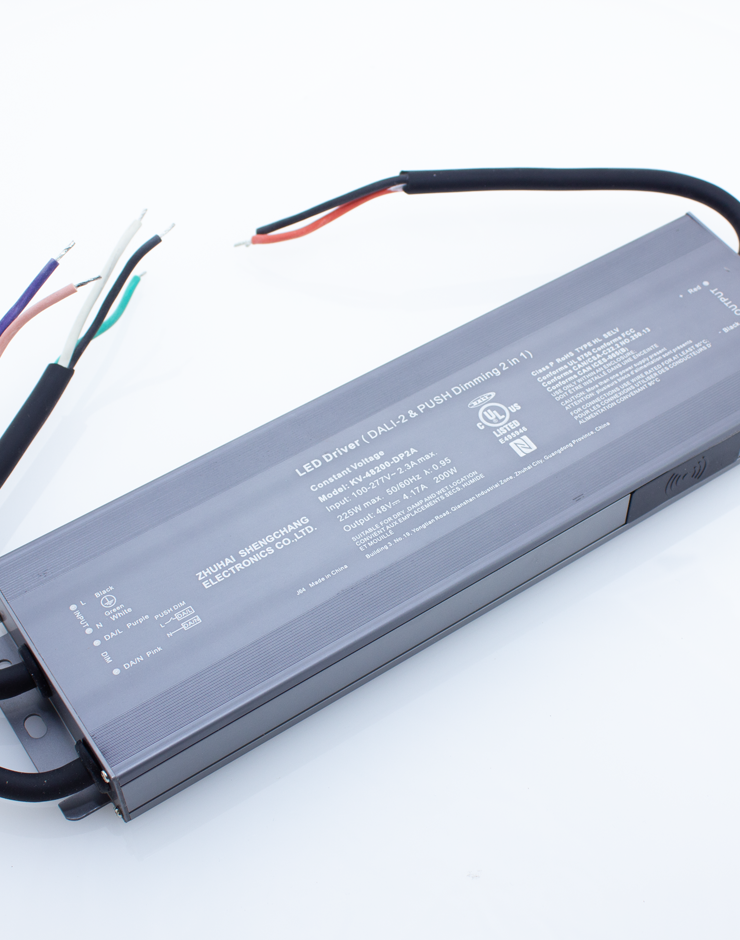

Wavelux 48V Constant Voltage 200W DALI-2 DT8 CCT&Push-Dim LED Driver

$219.99
Free Shipping Orders over $50
Secure Checkout SSL encrypted
30-Day Warranty Against defects

The Wavelux 48V Constant Voltage 200W DALI-2 LED Driver is an all-in-one LED Dimmable Driver for all of your DALI-2 needs. The universal voltage (100-277V AC) allows worldwide usage, and extensive certifications allows this to be used in nearly any environment; dry, damp, or wet (IP66 Rated), Class P, RoHS, Type HL, SELV, UL Listed. The efficient (up to 93.5%) and built-in active PFC function allows for smooth operation without having to worry about overheating, or flickering. The full 0-100% dimming range allows for many different LED fixtures to adjust the proper brightness. The DALI & PUSH 2 in 1 dimming (CCT), PWM output frequency 4KHz Stroboscopic exemption allows for multiple dimming options. The voltage is able to be adjusted via NFC via a free

Dimensions: 278 x 78 x 25.1mm

Weight: 1.06kg (2.2lbs)

Input Voltage: 100-277VAC

Output Voltage: 48V DC (48-50V adjustable by NFC)

Rated Power: 200W

Power: 8.3A

Dimming Range: 0-100%

Protections: Short Circuit, Overload, Over Temperature

Waterproof Rating: IP66

Working Temp: -40 - 60C Class P, Type HL

Certifications: UL, cUL, FCC, RoHS
